DeltaTrak FlashLink 30000 PTL PDF Single-Use Temperature Logger


Features
  • Compact, single-use temperature logger
  • Timezone set to GMT/UTC 0
  • No software required for download
  • Built-in USB connector, no special reading device needed
  • On-board software automatically creates PDF and CSV reports in °F and °C
  • View reports on a PC or tablet
  • Recorded data automatically scaled to graph

Applications
  • Export shipments
  • Pharmaceuticals
  • Biologics
  • Others


Description

This compact, single-use temperature recorder has a built-in USB connector and on-board software, making it ideal for export shipments of pharmaceuticals, biologics, etc.

Receivers across the globe can quickly and easily download recorded trip history without special reading devices or installing software. PDF and CSV reports are automatically generated with both °F and °C scales, including a graph, summary analytics and tabular data. Files are conveniently shared, printed and saved from a PC, tablet or smart phone with adapter and compatible Adobe Reader application.

One model is suitable for domestic routes and import/export operations, for all modes of transportation: air, truck, rail or ocean container. Shippers simplify logger inventory management without having to stock multiple models of various logging durations. Recorded data is scaled to fit a graph on a one-page PDF report, which means shorter logging periods are shown with high resolution as a full graph.

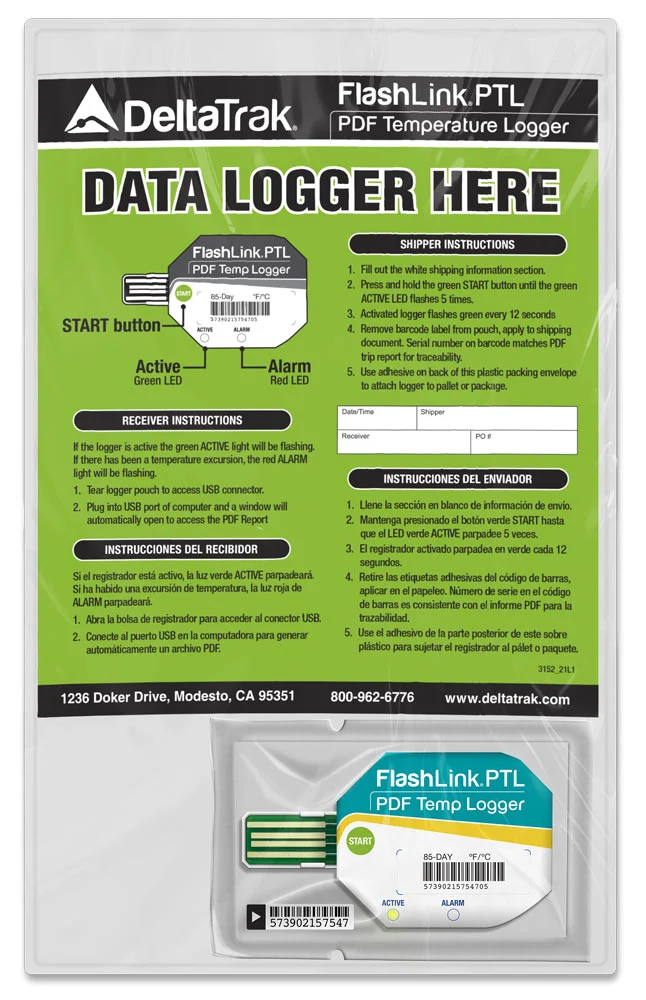

Packaging

Each FlashLink® PTL PDF Temperature Logger is placed inside a clear sealed plastic pouch that gives the logger its IP-67 rating. The logger in the sealed pouch is then placed inside a green plastic shipping bag, making it easy to find when a load arrives. A peel-away barcode label on the logger sealed pouch can be attached to the bill of lading or other shipping documents, for traceability. The green plastic shipping bag also provides shipper and receiver instructions in English and Spanish.

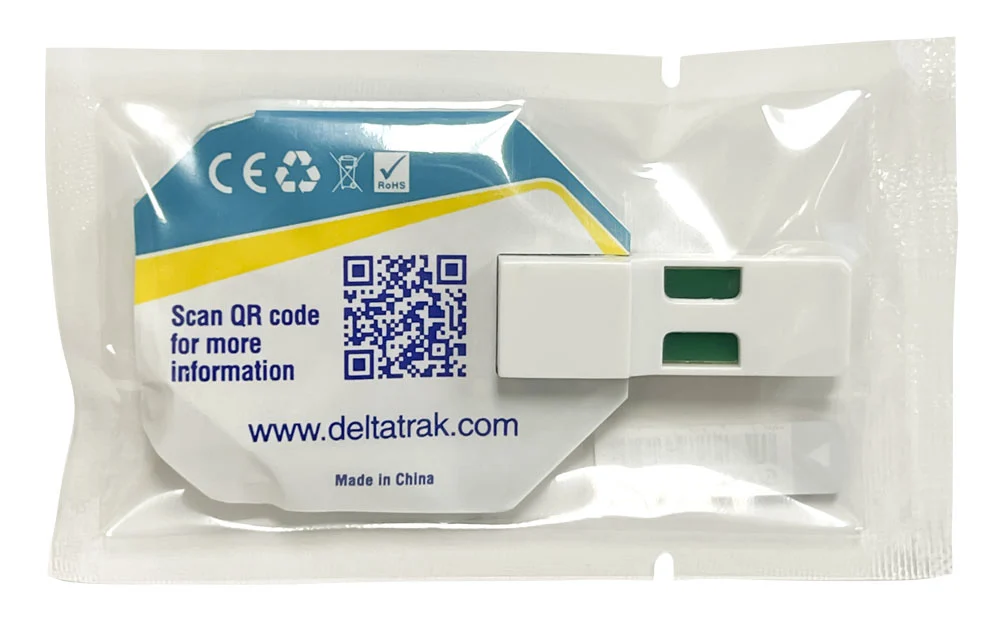

Users can scan the QR code on one side of the logger overlay to quickly access more product information from the URL.



Technical Specifications


Feature Specification
Measurement Range -40°F to 140°F (-40°C TO 60°C)
Accuracy (±1.0°F) from -4°F to 14°F (±0.5°C) from -20°C to -10°C
(±0.6°F) from 14°F to 50°F (±0.3°C) from -10°C to 10°C
(±1.0°F) from 50°F to 77°F (±0.5°C) from 10°C to 25°C)
(±1.8°F) if < -4°F or > 77°F (±1.0°C) if <-20°C or > 25°C
Sample Rate 10 Min
Data Capacity 12,288 data points
Trip Duration 85 Days
Temperature Scale °F/°C
Data Download Time 5 seconds typical
Battery Coin Cell Battery CR2032
Dimensions 1.858in x 3.071in x 0.402in
(47.2mm x 78mm x 10.2mm)
Weight 0.854 oz. (24.2 grams)
Shelf Life 18 Months
Certification RTCA/DO-160G Sect 21.5, CE Mark, Calibration traceable to NIST, RoHS Compliant
Display Green LED
Waterproof Rating IP67 in sealed plastic pouch
Storage Conditions -4°F to 122°F (-20°C to 50°C) 0% to 95% RH w/o condensation
System Requirements Windows or Mac PC with current operating system Adobe Reader
Download Requirements Direct USB connection to PC, tablet or printer
DeltaTrak manufactures products under an ISO 9001:2015 registered quality management system


Downloads
